- Combo Network Tool Kit – Including a Pass Through cat5 cat5e cat6 crimper, a Network Cable Tester, 50PCS CAT6 End-Pass-Through Ethernet Connector, 50PCS Covers, a Network Wire Stripper and wire Cutter plier
- Cable Tester & Replaceable Blade – Network/Phone Tester for cables with RJ45/RJ11/RJ12 Connector (9V battery not included), Maintains razor sharpness, textured handle grips reduce hand fatigue and prevent slipping during cutting, stripping and crimping
- Versatile EZ Crimp Tool – Lets you cut, strip and crimp (CAT6, CAT5/5e) and telephone cables, Compatible with all RJ45 CAT6 connectors (including shielded), RJ45 CAT5 CAT5e connectors, and RJ11/12 connectors (excluding AMP)
- Cat6 Cat5 Crimping Tool Kit: Made of professional-grade heavy-duty steel so it delivers exceptional torque without bending, die head assembly provides 360 degrees of connector support for terminating modular plugs on stranded or solid cable
- Our Worry-Free 18-Month Warranty and Toll-Free Tech Support, and friendly customer service. If you are not satisfied with your purchase, Please return it for a full refund of your purchase price
From the brand
Previous page
-
SOLSOP Tools’ mission is to provide products with performance, durability, and precision, and then ensure that every product delivers reliable, quality at an affordable value. -
-
-
Next page
Product Description
ABOUT SOLSOP TOOLS
SOLSOP Tools’ mission is to provide products with performance, durability, and precision, and then ensure that every product delivers reliable, quality at an affordable value.
- Kit Included:
- 1 x EZ Crimp Tool(Blue)
- 1 x Network Cable Tester
- 1 x Network Wire Stripper(Yellow)
- 1 x wire Cutter plier
- 50PCS x RJ45 Pass Through Connectors
- 50PCS Covers
Professional Must-have Home Network Tool Kit
RJ45 Crimp Tool Kit with Network Lan Cable Tester, Premium Quality 50PCS CAT6 End-Pass-Through Connectors, 50PCS Covers, a Network Wire Stripper and wire Cutter plier
- The cat5e cat5e Cat6 Crimping Tool provides 360 degrees of connector support during the crimping cycle, as it cuts, strips and terminates RJ11/12 and RJ45 extended copper wires with a precision die head.
- Fast and reliable Network Tool cat6 crimper tool that crimps RJ45 modular plug for CCTV, Security, media and data communication by upholding a clean cut trims on RJ45/RJ11/12 end-pass-through 8 conductor.
- Compatible with all RJ45 and RJ12/11 connectors as well as all standard modular plugs, except AMP
- Built-in cutter and stripper that crimps and cuts wires in one operation
- The ratchet mechanism allows you to make clean, consistent and repeatable terminations
- Easy to replace the 8 pin blade that is responsible for a clean cut during pass-through connector termination
- Features precision ground crimp dies, a full-cycle ratcheting mechanism, and steel construction for strength and durability
- Zero flex frame prevents torque loss during the crimping cycle
- Tool steel die head assembly provides 360º of connector support during crimp
- Clean, ultra flush trim on the RJ45 extended conductors
How To Make a RJ45 Ethernet Cable Connector
- Putting the Blue Cover Boots into the cable inadvace.
- Put the cable into the stripping port of the pass through modular crimper
- Hold the ethernet crimper or use mini wire stripper and rotate the cable on 360 degrees to strip the cable. (Note: Don’t crimp too much tightly to avoid damaging the internal cable).
- Line up the eight colors of the cable according to T568A standard or T568B- (T568B Standard used in home more widely).
- After line up the eight colors of the cable, you should cut the wires neatly through the cutting port blade of the rj45 crimper.
- Please insert the sequential cable into the end of the crystal connector. When inserting the cable into the crystal connector, hold the cable tightly to avoid the wrong sequence.
- Insert the network cable with crystal connector into the 8P crimping port.
- Squeeze the handle hard and release then, pull out the crystal connector.
- The rj45 Ethernet Cable connector is completed.
|
|
|
|
|---|---|---|
|

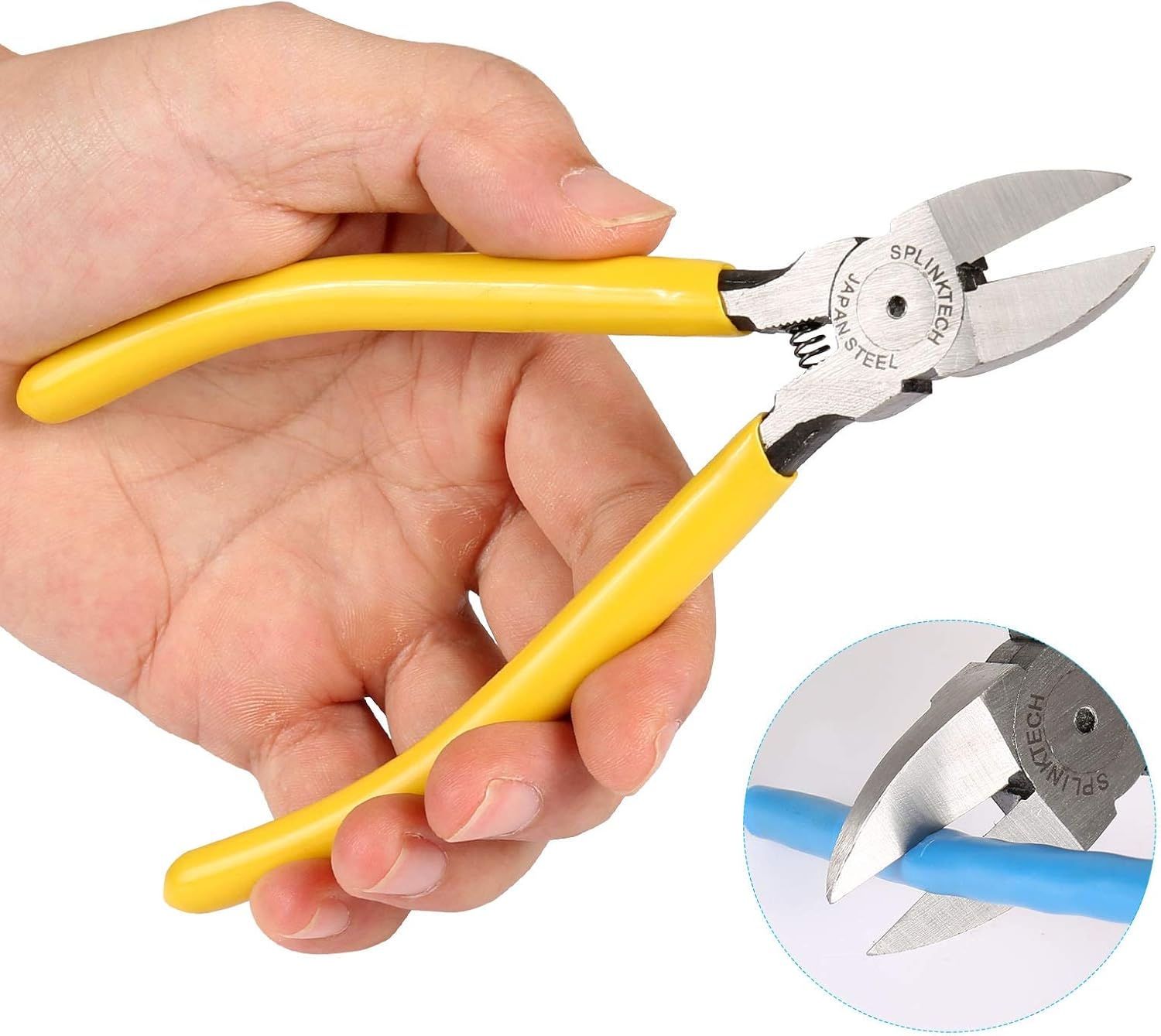

Wire Cutter Pliers
|
Wire Stripper for UTP/STP Strips
|
