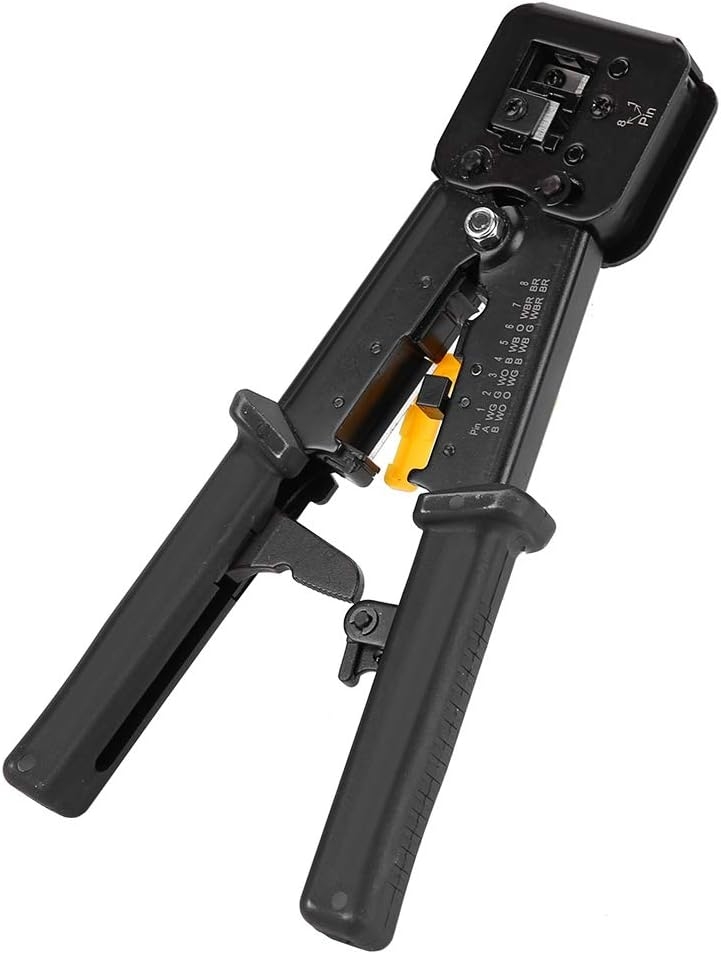

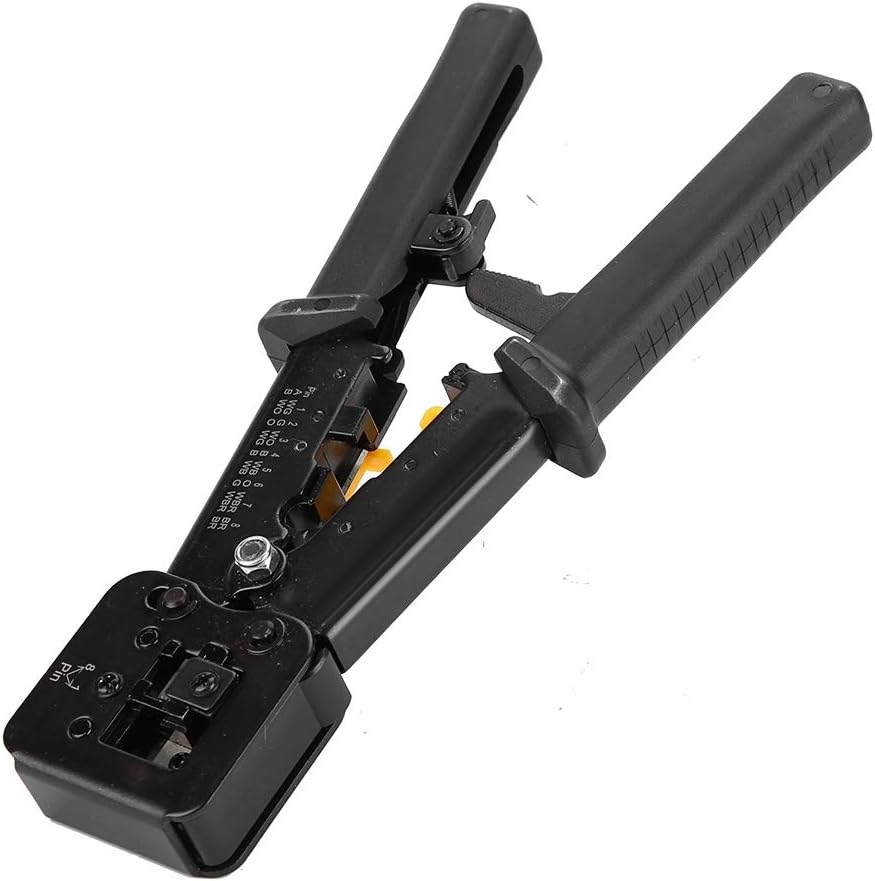

- 【Application】: RJ45 crimper tool can be used to suppress 6P/8P through-hole crystal head and conventional crystal head
- 【Sturdy Steel Structure】: The RJ45 crimping tool uses a steel frame, the surface is treated with special anti-rust, it is sturdy and durable, and can provide you with long-term service
- 【Textured Handle】: Safe and non-slip, the textured handle of the crimping tool wire cutter can reduce hand fatigue and prevent slipping during cutting, peeling and crimping
- 【Fast and Reliable】: Expanded surface area on contact drivers delivers full, uniform crimp force; to obtain a clean, flush effect
- 【Multifunction in One】: This connector crimping tool has the functions of crimping, stripping, and disconnecting; practical and convenient
Product Description
Specifications:
Condition: 100% Brand New
Material: Tool Steel
Color: Blue, Black (Optional)
Size: Approx. 21.5 * 6 * 2 cm / 8.4 * 2.3 * 0.7 in
Weight: Approx. 520 g
Standard Connection Of Double Stranded Wire:
Twin-stranded wire is commonly used in the wiring of star network. Each twin-stranded wire is connected to various network equipment through the rj-45 connector (commonly known as crystal head) installed at both ends. The standard connection method of double stranded wire is not arbitrary, the purpose is to ensure the symmetry of the layout of the cable joint, so that the interference between the cables in the joint can be offset.
Super five kinds of lines are the most commonly used network lines for network wiring. Must be better if it is outdoor use, shielded wire, in general indoor five classes with a shielding line is enough, because without a shield, the cable will be relatively soft, but the connection methods are the same. There are four pairs of twisted strings in a typical super five, marked in different colors.
There are two ways to connect double-stranded wires: EIA/TIA 568B standard and EIA/TIA 568A standard.
Set the tail of the crystal head downwards (i.e., the flat side upward), from left to right, as 1, 2, 3, 4, 5, 6, 7, 8 respectively
T568A line sequence:
1 2 3 4 5 6 7 8
Green white, Green, Orange white, Blue, Blue white, Orange, Brown white, Brown
T568B line sequence:
1 2 3 4 5 6 7 8
Orange white, Orange, Green white, Blue, Blue white, Green, Brown white, Brown
Package Included:
1 x Crimping Tool
