- Input: AC 100V – 240V, 50 / 60Hz ; Output: DC 24V, Max 3A, 72W ; It can supply with all amperage less than 3A. —such as 500mA, 800mA, 1A, 2.5A, 3A. If your device draws 2A then 2A will be supplied. But if draws more than 3A, only 3A will be supplied and power supply will be damaged soon. NEVER OVERLOAD!
- Output DC adaptor jack size is 5.5mm x 2.5mm. In order to meet more needs,we give away a female DC connector. You can screw wires onto it easily, no soldering required.
- Certified by FCC CE ROHS. We focus on producing high quality power adapters. No noise, low temperature operation, no spontaneous combustion, no explosion, no fire hazard, stable output. Automatic overload cut-off, over voltage cut-off, automatic thermal cut-off, short circuit protection.
- It is perfect for 5050 3528 24V LED Strip Light, Wireless Router, ADSL Cats, HUB, Security Cameras, Audio/ Video Power Supply, 3D Printer, LED Driver, CCTV Security System, LCD Monitor, Webcam Router and other 24V devices. This product is an AC to DC adapter, NOT charger!!!It can’t be used to charge electronic devices with batteries, such as laptops. Otherwise, it may damage your device.
- If you don’t like our product or don’t want it, please feel free to contact us. We will happily accept the return and give you refund, we have 30 days money back guarantee, 18 months exchange.
From the brand
Previous page
-
Shenzhen SHNITPWR Electronics Co., Ltd. is a professional manufacturer of Adjustable Power Supply, Charger, AC/DC Adapter, LED Driver, Power Strip, etc. We can customize all kinds of power supply according to customers’ requirements.
We manufacture and inspect our products in strict accordance with GB/T19001-2008 IDT IS09001:2008 standard. The vast majority of power adapters have passed UL, FCC, CE, PSE, GS, ETL, RoHS and other certifications.
-
-
-
-
Next page
Product Description
Parameter
- Input: AC 100V~240V 50/60Hz
- Output Voltage: DC 24V ( constant voltage )
- Output Current & Wattage: Max 3A 72W

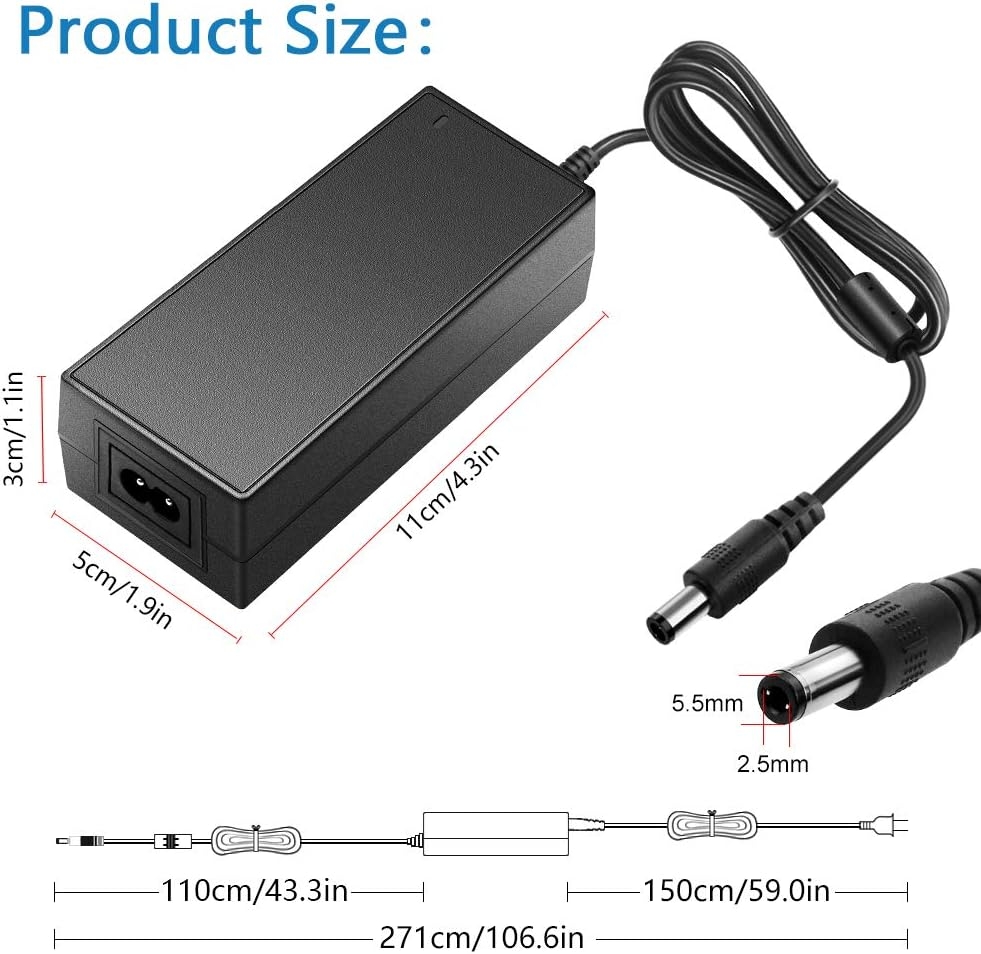

- Output DC connector:5.5mm x 2.5mm (inside”+”, outside”-“)
- AC input power cable length: 59in / 150cm
- DC output power cable length: 43.3in / 110cm
- Adapter body size: 4.3in (L) x 1.9in (W) x 1.1in (H)
- Working Temperature: 0~40℃
- Weight: 0.75 lb / 340g

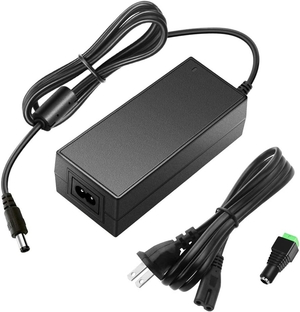

Package included
- 1x 24V 3A power supply adapter
- 1x AC power cord
- 1x DC female connector
Is this DC 24V 3A power supply (PS) compatible with your device?
|
|
|
|
|
|---|---|---|---|
|
1. Please find the spec label of your device and check the working voltage. It should be 24V DC, not be AC 24V or lower/higher than 24V DC. Otherwise, your device will not work or be damaged. |
2. Check the max current your device will draw. It should be equal to or less than 3A,such as 1A,2A,3A. Otherwise, your device won’t work well and the power supply will be damaged very soon. |
3. Check the power input port of your device. Its outer diameter should be 5.5mm; inner core diameter should be 2.5mm or 2.1mm. Inner core polarity should be”+”, exterior polarity should be” – “. |
4. If you have a power supply for reference, their output voltage, plug size, polarity should be the same .If our PS’s current is equal to or higher than original one’s, then our PS will work with your device. |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| 24V 2A 48W | 24V 3A 72W | 24V 5A 120W | 24V 6A 144W | 24V 8A 192W | 24V 10A 240W | |
| Customer Reviews |
4.5 out of 5 stars
484
|
4.4 out of 5 stars
77
|
4.4 out of 5 stars
418
|
4.2 out of 5 stars
73
|
4.4 out of 5 stars
418
|
4.4 out of 5 stars
418
|
| Price | $12.99$12.99 | $13.99$13.99 | $20.99$20.99 | $23.99$23.99 | $29.99$29.99 | $35.99$35.99 |
| Output Amps | 2A | 3A | 5A | 6A | 8A | 10A |
| Output Volts | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Output Port | 5.5mm x 2.5mm | 5.5mm x 2.5mm | 5.5mm x 2.5mm | 5.5mm x 2.5mm | 5.5mm x 2.5mm | 5.5mm x 2.5mm |
| Input Volts | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V |
| Max Power | 48W | 72W | 120W | 144W | 192W | 240W |
